Plans for large enclosure

[Red Earth Exotics]

Hey folks, I thought everyone might like to see the plans for my 8'X3'X2.5' enclosures I built. I am planning on using the same basic plan for my extreme giant enclosure with a few minor tweaks. It will be 10' foot long and 4' deep and 3' tall. Also instead of sliding glass doors I will probably have hinged doors with mesh screening on it.

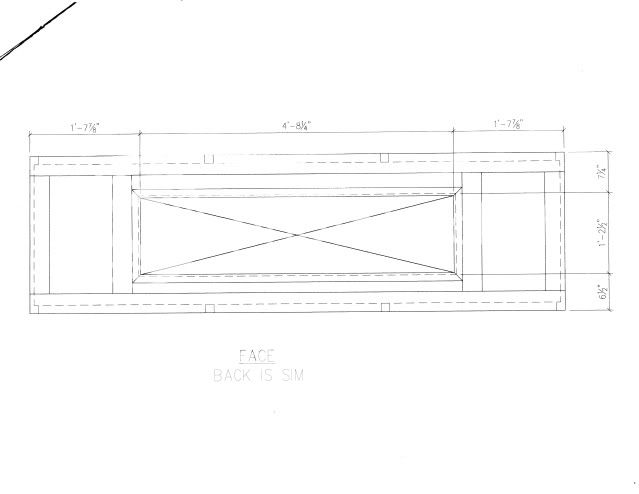

front view....

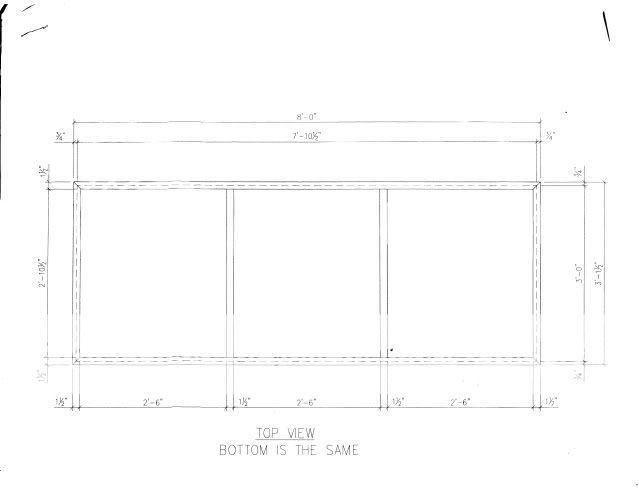

top view...

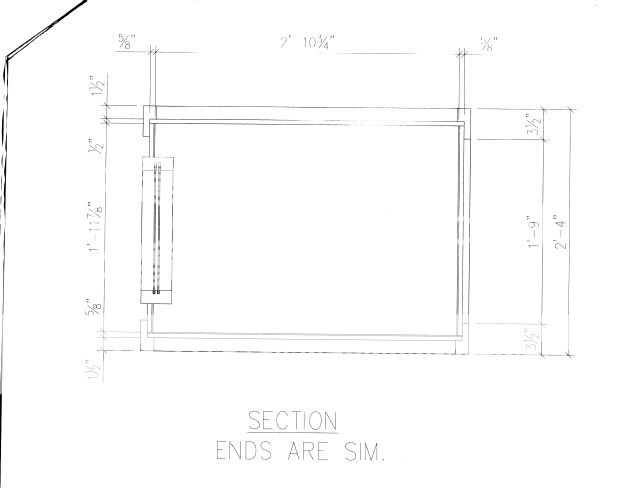

side view, cut-away...

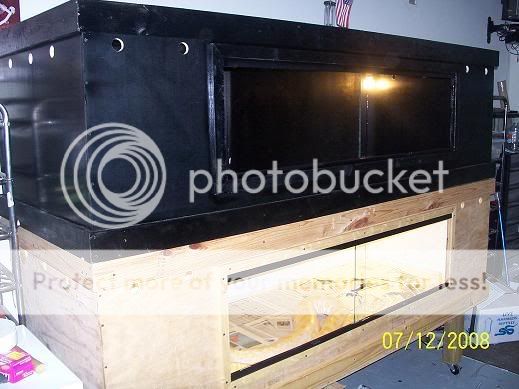

finished product....

**Sorry the scans of the plans aren't the greatest. I will try and convert the files from autocad to a jpeg file later. If anyone is interested in them.



[PinkPunisher]

Looks good! Nice job, I'm the animal will love it. Is it for a tegu or another snake?

Spencer



[Red Earth Exotics]

The ones in the pics are for my retics. The next one I'm going to modify it for my extreme giant that's going to be coming this summer.



[RehabRalphy]

Were do you get the track for the glass panels? Cost?



[Red Earth Exotics]

Here is the link to where I get the track from....

<!-- m --><a class="postlink" href="http://www.outwatercatalogs.com/2008_Master/lg_display.cfm?page_number=27" onclick="window.open(this.href);return false;">http://www.outwatercatalogs.com/2008_Ma ... _number=27</a><!-- m -->


Don't remember exactly what it cost, but I think I got enough track and wheels for 3 cages for about $35-$40 shipped.



[alewis0890]

wow I paid like 55 bucks for 3 sets of 4' plastic tracks... I wish I would of known about this place... thanks for the future reference though.


Nice plans and tanks bro!



[RehabRalphy]

Do you ever have issues with single-pane glass and large snakes weight against it?



[Red Earth Exotics]

no problems yet. the glass in my cages are 1/4" tempered glass. my female retic constantly tries to push at it. that plastic track is pretty tough for it being plastic.



[ColdThirst]

Those look good. It just goes to show that when people put their mind to something they can always just do it themselves. This is a perfect example and so is everyone elses cage builds.

I think thats cool in itself.

That reminds me of the Datsun build I have to do for this summer. Thats going to be somthing as well.
